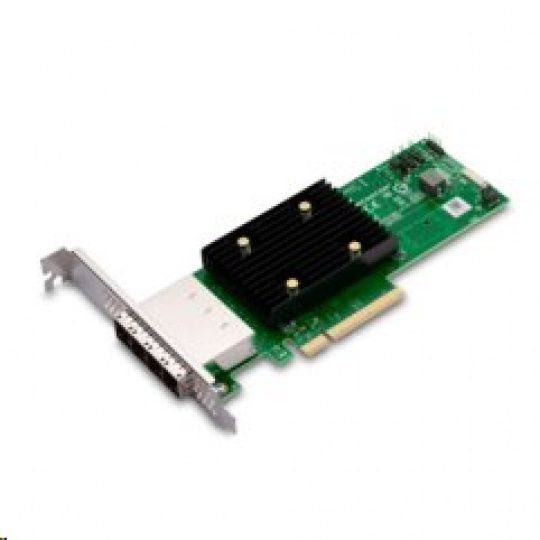

Popis produktu: HBA 9500-16e Tri-Mode Storage Adapter PCIe Gen 4.0 HBA enables customers to integrate into U.3 backplanes utilizing UBM for maximum flexibility and configuration options The 9500-16e Tri-Mode, PCIe Gen 4.0 HBA with 16 external ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility. With increased bandwidth and IOPS performance over previous generations, the 9500-16e adapter delivers the performance and scalability needed by critical applications. Connects up to 1024 SAS/SATA devices or 32 NVMe devices Provides maximum connectivity and performance for high-end servers and applications Support critical applications with the bandwidth of PCIe 4.0 connectivity Universal Bay Management (UBM) Ready Specification / Value Lifecycle: Active Typical Power: 8.74W Host Bus Type: x8 lane PCI Express 4.0 Physical Dimensions: Low profile 6.600" x 2.712" Devices Supported: SAS/SATA: 1024, NVMe: 32 External Connectors: 4 x4 SFF-8644 (ext HD) Internal Ports: 16 Operating Temperature: 0°C to 55°C OS Support: Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD I/O Controller: SAS3816 MTBF: > 5,000,000 hours at 40° C Operating Humidity :20% to 80% Non-condensing Brackets: Full height and low profile Regulatory Certifications: Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE Warranty: 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
