Evolúcia v technológii znova prekročila novú hranicu, Zvýšte výkon do astronomických výšin!

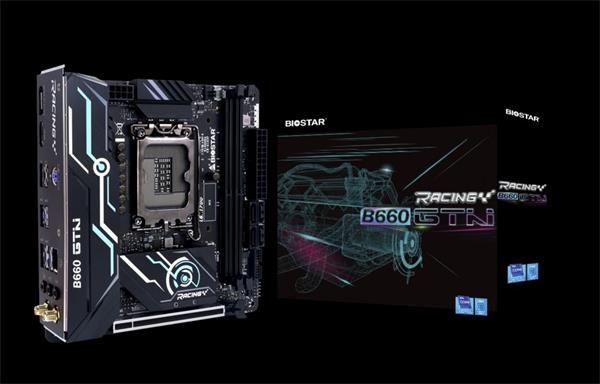

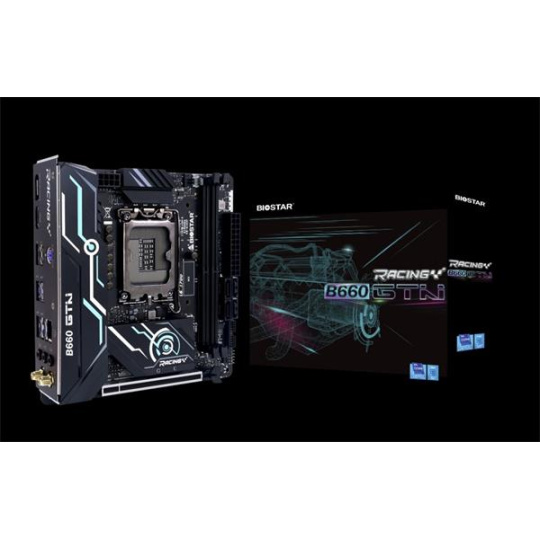

Herná základná doska BIOSTAR B660GTN je založená na čipovej sade B660, plne podporuje najnovšie procesory Intel 12. generácie a podporuje PCIe 5.0. Má celokovový chladič a má veľa dostupných funkcií. Keď veľkosť nie je problém, efektívnosť je to, čo chcete zlepšiť, potom je to najlepšia voľba.

Výhody
Podporuje procesor Intel Core™ 12. generácie
Jednočipová architektúra Intel B660
Podporuje 2-DIMM DDR4- 1866/ 2133/ 2400/ 2666/ 2800/ 2933/ 3200/ 3600 (OC)/ 3800 (OC)/ 4000 (OC)/ 4133 (OC)/4350000+/4350000+ až 64 GB pamäte
Podporuje PCIe 5.0
Podporuje PCIe M.2 4.0 (64 Gb/s)
Podporuje technológiu Intel Optane
Podporuje HDMI 2.0
Podporuje 2,5 GbE LAN
Podporuje USB 3.2 Gen2
Podpora modulu WiFi 6 a 6E (bez karty WiFi nie je súčasťou balenia)

Špecifikácia

Chipset
Intel B660

CPU SUPPORT
Support for 12th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/Intel Celeron processors in the LGA1700 package
* Please refer to www.biostar.com.tw for CPU support list.

MEMORY
Supports Dual Channel DDR4-1866/ 2133/ 2400/ 2666/2800/2933/3200/3600(OC)/3800(OC)/4000(OC)/ 4133(OC)/4300(OC)/5000+(OC)
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/ 8/ 16/ 32GB DDR4 module
Support Intel Extreme Memory Profile (XMP) memory modules
* Please refer to www.biostar.com.tw for Memory support list.

INTEGRATED VIDEO
By CPU model
Supports DX12
Supports HDCP

STORAGE
4 x SATA III Connector (6Gb/s) : Supports AHCI & Intel Rapid Storage Technology
1 x M.2 (M Key) Socket (M2_PCIEG4_64G):
Supports M.2 Type 2280 SSD module
Supports PCI-E 4.0 x4 (64Gb/s)
1 x M.2 (M Key) Socket (M2_PCIEG4_64G_SATA):
Supports M.2 Type 2280 SSD module
Supports PCI-E 4.0 x4 (64Gb/s) & SATA III (6Gb/s) SSD
Supports Intel Rapid Storage Technology and Intel Optane Technology

LAN
Realtek RTL8125B
10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability

AUDIO CODEC
ALC1220
7.1 Channels, High Definition Audio, Hi-Fi(Front + Rear)

USB
2 x USB 3.2 (Gen1) ports (2 via internal header)
4 x USB 3.2 (Gen2) ports (4 on rear I/Os)
4 x USB 2.0 ports (2 on rear I/Os and 2 via internal header)

EXPANSION SLOT
1 x PCIe 5.0 x16 Slot

REAR I/O
2 x WIFI Antenna Ports
1 x PS/2 Keyboard/ Mouse Port
1 x HDMI Port
1 x DP Port
4 x USB 3.2 (Gen2) Ports
2 x USB 2.0 ports
3 x Audio Jack

INTERNAL I/O
4 x SATA III Connectors (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x CPU water cooling connector (CPU_OPT)
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Switch Button
1 x LED Header (5V)
1 x LED Header (12V)
* M.2 (E key) Wi-Fi card is not provided

H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring

DIMENSION
Mini ITX Form Factor Dimension: 17cm x 17cm ( W x L )

OS SUPPORT
Supports Windows 10(64bit) / 11(64bit)
?Biostar reserves the right to add or remove support for any OS with or without notice.

BUNDLE SOFTWARE
Racing GT Utility
BullGuard

ACCESSORIES
4 x SATA Cable
1 x DVD Driver
1 x Quick Guide
1 x WiFi antenna accessories

FEATURES
VIVID LED DJ
BIO-FLASHER
A.I FAN
AURORA Utility
