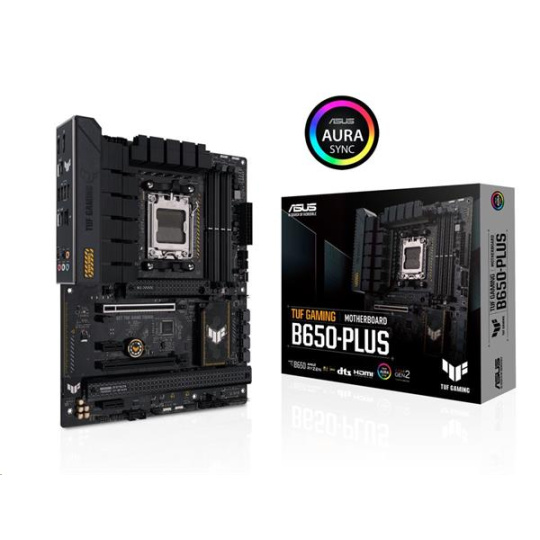

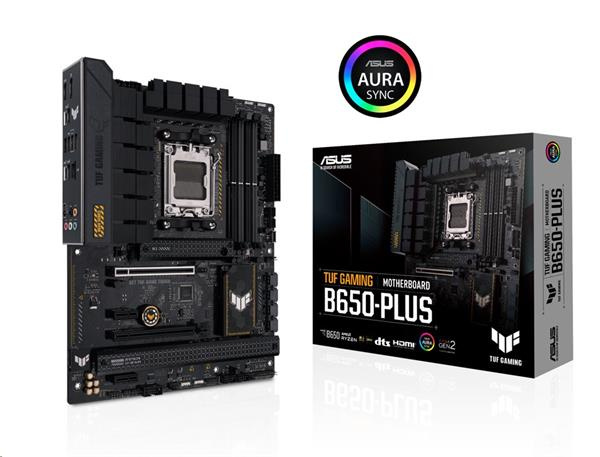

ASUS TUF GAMING B650-PLUS preberá všetky základné prvky najnovších procesorov AMD Ryzen série 7000 a kombinuje ich s funkciami pripravenými na hru a overenou odolnosťou. Táto základná doska, navrhnutá s komponentmi vojenskej kvality, vylepšeným riešením napájania a komplexným chladiacim systémom, presahuje očakávania so skalopevným a stabilným výkonom pre maratónske hranie. Základné dosky TUF GAMING tiež prechádzajú prísnym testovaním odolnosti, aby sa zaistilo, že zvládnu podmienky, v ktorých ostatní môžu zlyhať. Z estetického hľadiska tento model obsahuje robustné, tmavočierne a geometrické dizajnové prvky, ktoré odrážajú spoľahlivosť a stabilitu, ktorá definuje sériu TUF GAMING. CPU AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. Chipset AMD B650 Memory 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*" Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function Graphics 1 x DisplayPort* 1 x HDMI® port** * Supports max. 4K@60Hz as specified in DisplayPort 1.4. ** Supports 8K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution. Expansion Slots AMD Ryzen™ 7000 Series Desktop Processors* 1 x PCIe 4.0/3.0 x16 slot(s) AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 4.0/3.0 x1 slots * Please check PCIe bifurcation table on support site (https://www.asus.com/support/FAQ/1037507/). Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. ** M.2_3 shares bandwidth with PCIEX16_2. PCIEX16_2 will be suspended once M.2_3 is populated. Ethernet 1 x Realtek 2.5Gb Ethernet TUF LANGuard USB Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Audio "Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A)  1 x DisplayPort 1 x HDMI® port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks  1 x BIOS FlashBack™  button  Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C® ) 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 20-3 pin System Panel header with Chassis intrude function Special Features ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s) Software Features ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 2 x Rubber Package(s) for M.2 1 x Screw package(s) for M.2 SSD Installation Media 1 x Support DVD Documentation 1 x TUF Certification card 1 x User guide Operating System "Windows® 11, Windows® 10 64-bit" Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
