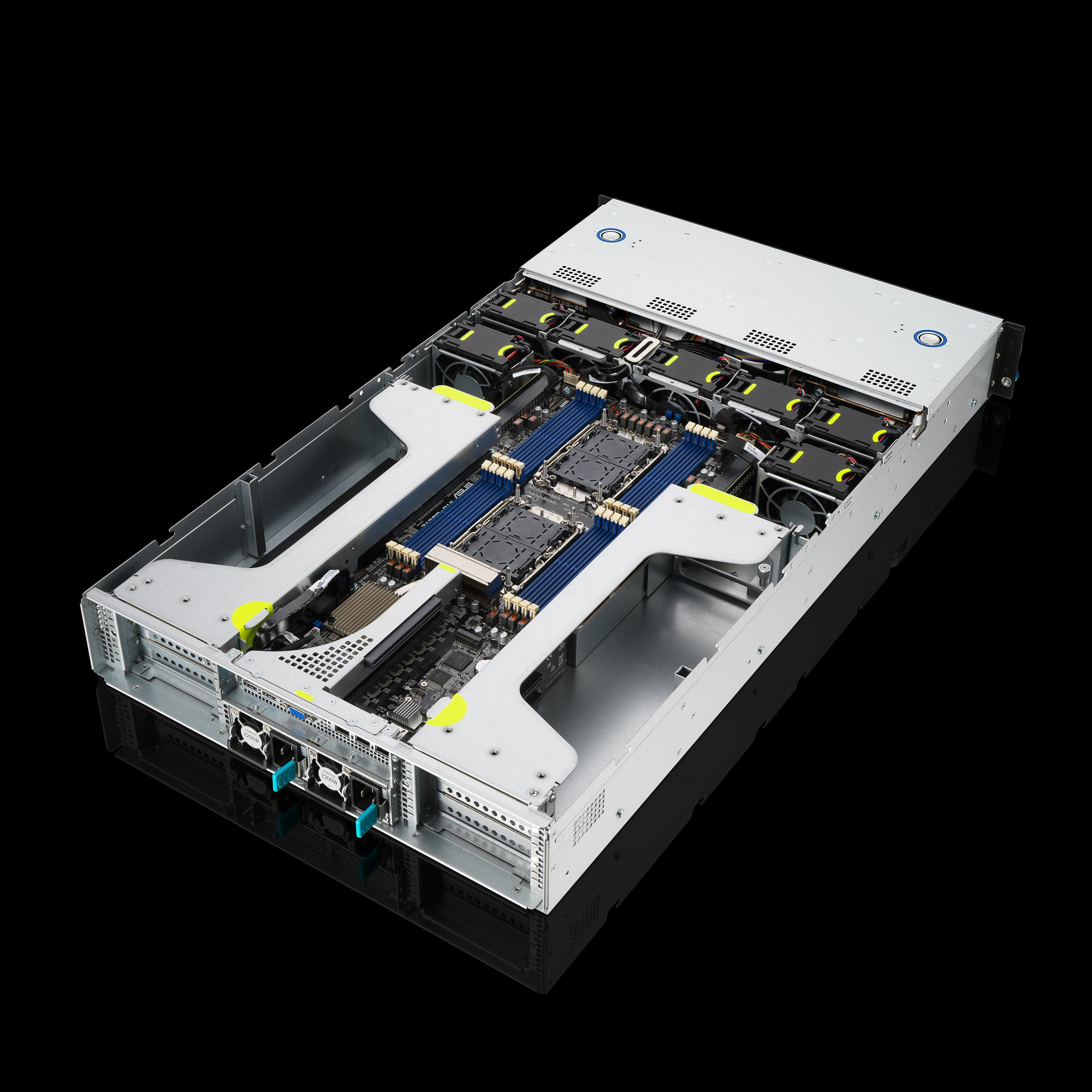

2U GPU server powered by dual-socket 3rd Gen Intel Xeon Scalable processors that supports up to 16 DIMM, four dual-slot GPU, 4 M.2, eight NVMe (by SKU), total eleven PCIe 4.0 slots, one OCP 3.0 (by SKU) and ASUS ASMB10-iKVM. Processor / System Bus 2 x Socket P+ (LGA 4189) 3rd Gen Intel® Xeon® Scalable Processors Family(205W) Core Logic Intel® PCH C621A Memory Total Slots : 16 (8-channel, 1DPC) Capacity : Up to 4,096GB DIMM Up to 6,144GB DIMM+PMem (200 series) Memory Type : DDR4 3200 RDIMM / LRDIMM / LRDIMM 3DS Memory Size : 256GB, 128GB, 64GB, 32GB, 16GB 512GB, 256GB, 128GB Intel® Optane™ DC Persistent Memory 200 Series (DCPMM) * Refer to support page for more information Expansion Slots Rear - 4 x PCIe x16 slots (Gen4 x16 link, FH,FL) for dual-slot GPU cards or 8 x PCIe x16 slots (Gen4 x8 link, FH,FL) for single-slot GPU cards* - 2 x PCIe x16 slots (Gen4 x16 link, LP,HL) Front - SKU-1: 1 x PCIe x8 slot (Gen4 x8 link, LP,HL) 4 x M.2 sockets (Gen4 x4 link, up to 22110 module) - SKU-2: 1 x PCIe x8 slot (Gen4 x8 link, LP,HL) 1 x OCP3.0 slot (Gen4 x16 link) - SKU-3: 8 x 3.5” NVMe support Storage Storage Controller : Intel® PCH C621A Optional kits Controller : ASUS PIKE II 3008-8i 8-port SAS 12G HBA card ASUS PIKE II 3108-8i 8-port SAS 12G RAID card Drive Bays 8 x 3.5" Hot-swap Storage Bays (SKU-1 & SKU-2 Backplane Supports 6 x SATA/SAS + 2 x SATA/SAS/NVMe Devices**) (SKU-3 Backplane Supports 8 x SATA/SAS/NVMe Devices) 1 x M.2 socket (Gen3 x4 link or SATA mode, up to 2280 on-motherboard) Networking 2 x 1GbE LAN ports (RJ45, Intel I350-AM2) Multi-GPU Support Please find the latest GPU support from https://servers.asus.com/support/gpu Front I/O Ports 4 x USB 3.2 Gen1 ports Rear I/O Ports 2 x USB 3.2 Gen1 ports 1 x VGA port 2 x 1GbE LAN ports (RJ45) 1 x Management port (RJ45) Switch/LED Front : 1 x Power Button/LED 1 x Location Button/LED 2 x LAN LED 1 x Message LED 1 x HDD Access LED Rear : 1 x Power Button/LED 1 x Location LED 1 x Message LED 1 x HDD Access LED OS Support Please find the latest OS support from https://servers.asus.com/support/os Management Solution ASUS Control Center Enterprise (in-band) ASMB10-iKVM (out-of-band/BMC AST2600) Regulatory Compliance BSMI, CB, CE, RCM, FCC(Class A) Dimensions 800 x 440 x 88.9mm Form Factor 2U Weight Net Weight: 34 Kg. Gross Weight: 44 Kg. Power Supply 1+1 Redundant 1600W 80 PLUS Platinum Power Supply C-14 power inlet Rating: 100-127Vac/200-240Vac,12.9A/9.5A,50-60Hz 1+1 Redundant 2200W 80 PLUS TITANIUM Power Supply C-20 power inlet Rating: 100-127Vac/200-240Vac,14A/12.6A,47-63Hz Environment Operation temperature: 10? ~ 35? Non operation temperature: -40? ~ 70? Non operation humidity: 20% ~ 90% ( Non condensing) Note *We also provide special GPU riser cards (with PCIe-switch) could support 8 single-slot GPU cards (x16 link for each). If customers need the customization, please contact ASUS sales representative for detail. **Users need to remove Slimline cables from the front PCIe riser board & OCP3.0 slot board, and re-connect the cables to the backplane to support up to 8 x NVMe devices. Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products. All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details. PCB color and bundled software versions are subject to change without notice. Brand and product names mentioned are trademarks of their respective companies. The terms HDMI and HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. The information contained is general testing result for reference. Please consult local sales representative for more information on specific supported CPU list on each system.
