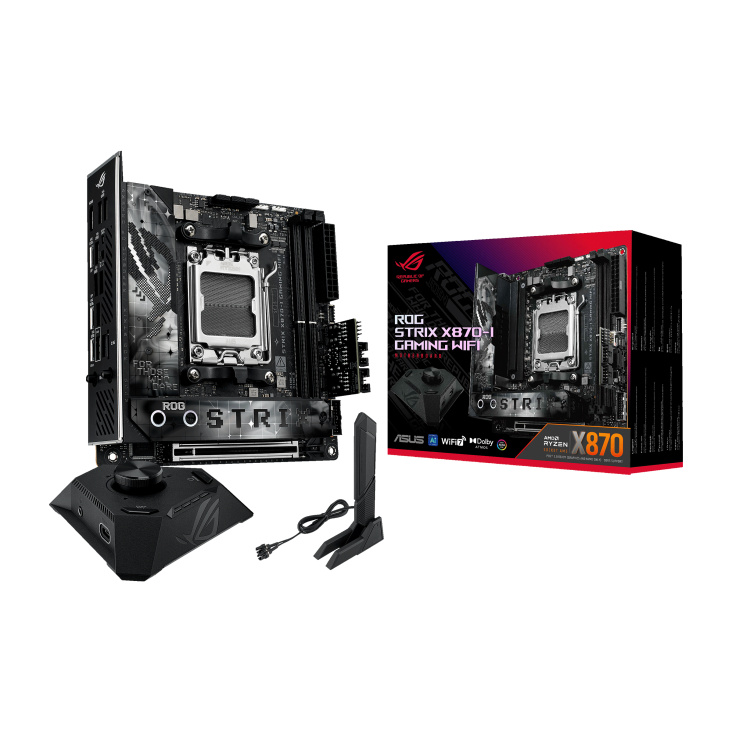

ROG STRIX X870-I GAMING WIFI Základná doska AMD X870 formátu Mini-ITX s 10+2+1 fázami napájania, Dynamic OC Switcher, Core Flex, sloty DDR5 s AEMP, WiFi 7 s ASUS WiFi Q-Antenna, dva sloty M.2, PCIe® 5.0 x16 SafeSlots s PCIe® Slot Q-Release Slim a plnohodnotnou podporou grafických kariet novej generácie, dva porty USB4®, ROG Strix Hive II, AI Overclocking, AI Cooling II, AI Networking II a osvetlenie Aura Sync RGB. Pripravená pre pokročilých AI PC: Je navrhnutá pre budúce AI výpočty vďaka výkonu a konektivite, ktoré sú potrebné pre náročné AI aplikácie. Socket AMD AM5: Pripravená na desktopové procesory AMD Ryzen™ radov 9000, 8000 a 7000 Inteligentné ovládanie: Exkluzívne technológie ASUS AI Overclocking, AI Cooling II, AI Networking II a AEMP zjednodušujú nastavenie a zvyšujú výkon Technológia ROG Strix na pretaktovanie: Dynamic OC Switcher, Core Flex, Asynchronous Clock a PBO Enhancement Robustné riešenie napájania: Riešenie napájania 10+2+1 dimenzované na 110 A na fázu s napájacími konektormi ProCool II Optimalizované riešenie chladenia: Masívne chladiče s integrovaným I/O panelom a vysoko vodivé tepelné podložky prepojené pomocou backplate v tvare písmena L Podpora najmodernejších M.2: Jeden integrovaný slot PCIe® 5.0 M.2 a jeden slot PCIe 4.0 M.2, každý s rozsiahlym riešením chladenia Bohaté možnosti pripojenia: Dva porty USB4® Type-C, USB konektor 10Gb/s Type-C® na prednom paneli, sedem ďalších portov USB 10Gb/s, PCIe® 5.0 x16 SafeSlot s plnohodnotnou podporou grafických kariet novej generácie, port HDMI™ Vysoko výkonné sieťové pripojenie: Integrovaná WiFi 7 (802.11be) s Intel® 2,5 Gb Ethernet Vhodná pre DIY: Súčasťou balenia karta ROG FPS a ROG Strix Hive II, PCIe Slot Q-Release Slim, M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-LED, tlačidlo BIOS FlashBack™, tlačidlo Clear CMOS a predmontovaný I/O panel Pohlcujúci zvuk: Externé zvukové riešenie ROG Strix Hive II s prevodníkom ESS™ SABRE 9260Q a technológiou Dolby Atmos® Bezkonkurenčná personalizácia: Exkluzívne osvetlenie ASUS Aura Sync RGB zahŕňajúce dva adresovateľné headery Gen 2 Renomovaný softvér: ASUS DriverHub, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-dňová bezplatná skúšobná verzia) Technická špecifikácia: CPU AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list. Chipset AMD X870 Memory 2 x DIMM slots, max. 96GB, DDR5 Supports up to 8400+MT/s(OC) with Ryzen™ 9000 Series Processors, 8600+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*" Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x HDMI™ port** 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a **** VGA resolution support depends on processors' or graphic cards' resolution. Expansion Slots AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)* * Specifications vary by CPU types. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors* M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors* M.2_1 slot (Key M), type 2280(supports PCIe 4.0 x4 mode) AMD X870 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 2 x SATA 6Gb/s ports*** * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1 *** Install ROG FPS Card to support 2 x SATA 6Gb/s ports. Ethernet 1 x Intel® 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate. Bluetooth® v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications." USB Rear USB (Total 10 ports) 2 x USB4® (40Gbps) port(s)(2 x USB Type-C®) 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®) 3 x USB 2.0 port(s) (3 x Type-A) Front USB (Total 3 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports * USB Type-C® power delivery output: max. 5V/3A ROG STRIX HIVE II(Total 2 ports) 2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®) ROG FPS Card (Total 3 ports) 2 x USB 2.0 headers additional 3 USB 2.0 ports Audio ROG Strix Hive II Audio Features - ROG Hyper-Grounding Technology - ESS® SABRE9260Q DAC - Silver-plated audio jacks - Dedicated audio PCB layers Back Panel I/O Ports 2 x USB4® (40Gbps)(2 x USB Type-C®) 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®, 1 port supports ROG STRIX HIVE II) 3 x USB 2.0 port(s) (2 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 1 x BIOS FlashBack™ button 1 x Clear CMOS button Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 1 x 4-pin Chassis Fan header(s) Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header support(s) 2 additional USB 5Gbps ports Miscellaneous 2 x Addressable Gen 2 headers 1 x 2-pin Power Button header 1 x Thermal Sensor header 2 x USB Type-C® connectors to install ROG FPS card ROG FPS card 2 x SATA 6Gb/s ports 1 x CPU Over Voltage jumper 1 x Front Panel header 1 x Alteration PCIe Mode switch 2 x USB 2.0 headers support 3 additional USB 2.0 ports Special Features ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - Aluminum backplate ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 header(s) ROG STRIX HIVE II 1 x USB Type-C® connects to motherboard 2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®) 1 x Headphone jack with mic in 1 x Power button 1 x FlexKey button 1 x Volume control knob with mute button Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) Software Features ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - AIDA64 (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - HWiNFO - Power Saving ASUS Driver Hub ASUS GlideX Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey Dynamic OC Switcher BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 1 x Panel cable 1 x ROG USB2.0 splitter cable 2 x SATA 6Gb/s cables ROG FPS Card 1 x ROG FPS Card ROG STRIX HIVE II 1 x ROG STRIX HIVE II 1 x USB Type-C® power connection cable Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package(s) 1 x ROG key chain 1 x ROG Strix stickers 1 x M.2 rubber package(s) Documentation 1 x Quick start guide Operating System Windows® 11 64-bit Form Factor Mini-ITX Form Factor 6.7 inch x 6.7 inch (17 cm x 17 cm)
