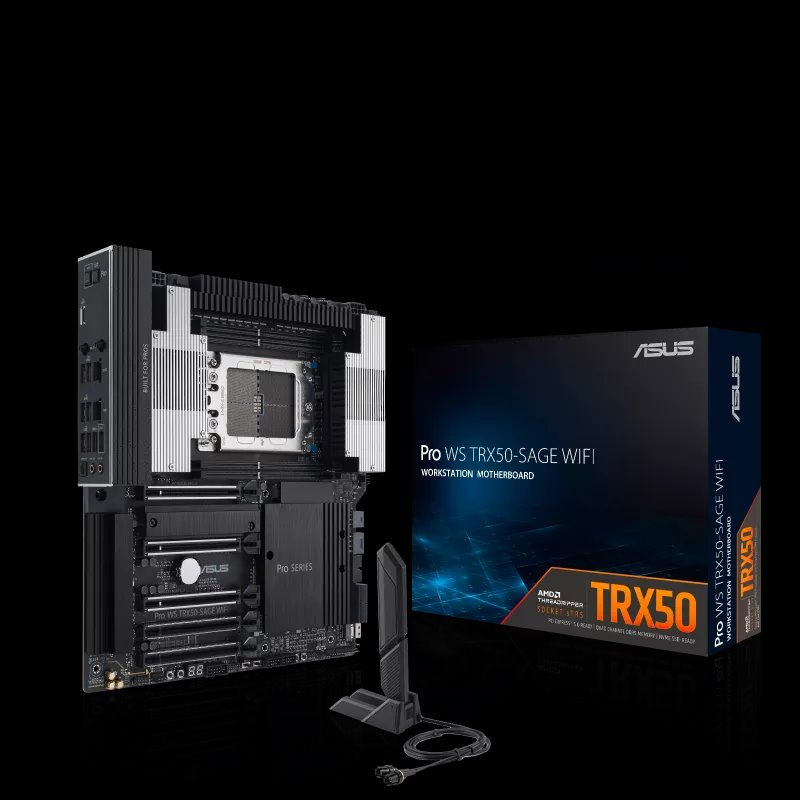

AMD TR5 CEB workstation motherboard, CPU and memory overclocking ready, robust 36 power-stage design, PCIe 5.0 x 16, PCIe 5.0 M.2, 10 Gb and 2.5 Gb LAN, multi-GPU support AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors and AMD Ryzen Threadripper 7000 Series Processors. CPU and memory overclocking: Support for up to 1TB ECC R-DIMM DDR5 memory modules (1DPC) Robust power and thermal design: 36 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks, and M.2 thermal pad. Ultrafast connectivity: three PCIe® 5.0 x16 slots, 10 Gb & 2.5 Gb LAN ports, three M.2 slots, front and rear USB 20Gbps Type-C® and SlimSAS NVMe support. Server-grade IPMI remote management: hardware and software support for ASUS IPMI expansion cards, plus ASUS Control Center Express software for real-time monitoring and management Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation Model Pro WS TRX50-SAGE WIFI CPU AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors * Chipset AMD TRX50 Chipset Memory 4 x DIMM slots, DDR5, ECC Registered Memory* 4 Channel Memory Architecture * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. Expansion Slots AMD Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors 2 x PCIe 5.0 x16 slots 1 x PCIe 5.0 x16 slot(x8 mode) 1 x PCIe 4.0 x16 slot 1 x PCIe 4.0 x16 slot(x4 mode) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/) Storage Total supports 3 x M.2 slots, 4 x SATA 6Gb/s ports AMD Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)AMD TRX50 Chipset M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports 1 x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. Ethernet 1 x Marvell® AQtion 10Gb Ethernet 1 x Intel® I226-LM 2.5Gb Ethernet Wireless & Bluetooth Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be)** Supports 2.4/5/6GHz frequency band*** Support Wi-Fi 7 160MHz bandwidth, up to 2.8Gbps transfer rate. Bluetooth® v5.4**** * Compatible with Windows 11 or later. ** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later. *** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. **** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. USB Rear USB (Total 9 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A ) 2 x USB 2.0 ports (2 x Type-A ) Front USB (Total 7 ports) 1 x USB 20Gbpsconnector (supports USB Type-C® with up to 27W PD/QC4+) 1 x USB 5Gbps header supports 2 additional USB 5G ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Audio Realtek ALC1220P Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback Back Panel I/O Ports 1 x USB 20Gbps port (1 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A) 2 x USB 2.0 port (2 x Type-A) 1 x Wi-Fi Module 1 x Marvell® AQtion 10Gb Ethernet port 1 x Intel® 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x W_PUMP+ header 4 x 4-pin Chassis Fan headers 2 x 4-pin VRM Fan header (with VRM FAN onboard) Power related 2 x 24-pin Main Power connectors 2 x 8-pin +12V Power connectors 2 x 8-pin PCIe to CPU power connectors 1 x 6-pin PCIe Power connector 1 x 8-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x SlimSAS port USB 1 x USB 20Gbps connector supports USB Type-C® 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x BMC header1 x COM Port header 1 x USB4 header1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x Start button 1 x Safe boot button 1 x ReTry button1 x LN2 mode jumper 1 x Slow mode switch 1 x SPI TPM header (14-1pin) 1 x 10-1 pin system panel header 1 x Chassis intrusion header 1 x Thermal Sensor header Special Features ASUS Q-Design - Q-Code - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-SlotASUS Thermal Solution - M.2 heatsink and onboard thermal pads - VRM heatsink design with active fans ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMMBespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection Software Features ASUS Exclusive Software Armoury Crate- Fan Xpert 4 ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUSTeK. EzFlash UtilityFlexKey BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE (UEFI mode) Accessories Cables 2 x SATA 6Gb/s cables 1 x CPU 8-pin to PCIe 8-pin adapter cable package 1 x Thermistor cable pack Miscellaneous 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas 1 x M.2 Q-Latch package(2 in 1) 2 x M.2 Rubber Packages 1 x Q-connectorDocumentation 1 x ACC Express Activation Key Card 1 x QSG Operating System Windows® 11 Windows® 10 64-bit Form Factor CEB Form Factor 12 inch x 11 inch (30.5 cm x 28.0 cm)
