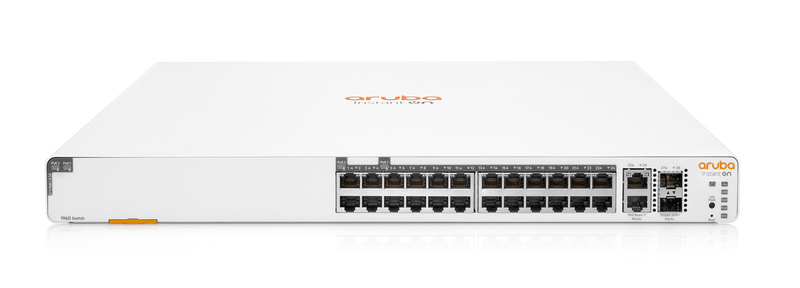

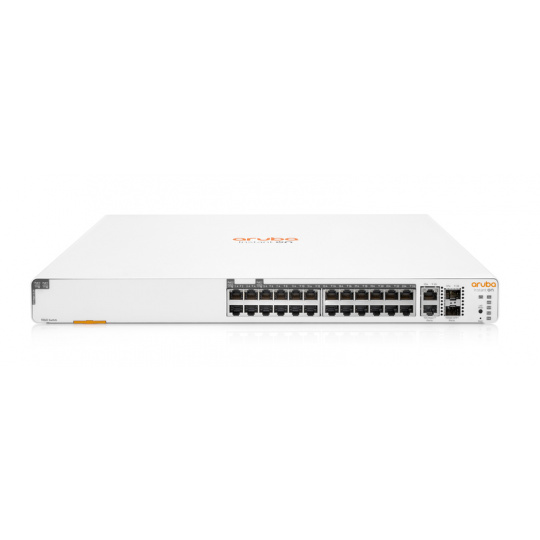

Aruba Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Switch (JL807A) Specifications I/O ports and slots 24 RJ-45 autosensing 10/100/1000 Mbps ports including 4 CL4 and 20 CL6 PoE ports IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at Class 4, IEEE 802.3bt Class 6); Duplex: 10BASE-T/100BASE TX: half or full; 1000BASE-T: full only 2 SFP+ 10GbE ports 2 10GBASE-T ports Dimensions 350.5(d) x 442.5(w) x 43.95(h) mm Weight 10.4 lb (4.7 kg) CPU Single-Core ARM v7 Cortex-A9 @800MHz 100 Mb Latency < 4.4 uSec 1000 Mb Latency < 2.2 uSec 10000 Mb Latency < 1.1 uSec Throughput (Mpps) 95 Mpps Capacity 128 Gbps Routing Table size (# of static entries) 32 IPv4/IPv6 MAC Address table size (# of entries) 16,000 entries Reliability MTBF (years) 65.3 Operating temperature 0-40°C, 0-10,000 ft Operating relative humidity 15% to 95% @ 104°F (40°C) non-condensing Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C) up to 15000 ft Nonoperating/Storage relative humidity 15% to 90% @ 149°F (65°C) non-condensing Altitude up to 10,000 ft (3 km) Acoustics1 LWAd = 3.5 Bel Notes1: 1 Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL807A and JL809A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm) Electrical Characteristics Frequency 50Hz/60Hz AC voltage 100-127VAC / 200-240VAC Current 5.0A/0.4A Maximum power rating 100-127V: 500W 200-220V: 480W Idle power 100-127V: 40W 200-220V: 80W PoE power Total 370 W PoE Power (Up to 240 W of Class 6 or 370 W of Class 4 PoE) Power Supply Internal power supply
