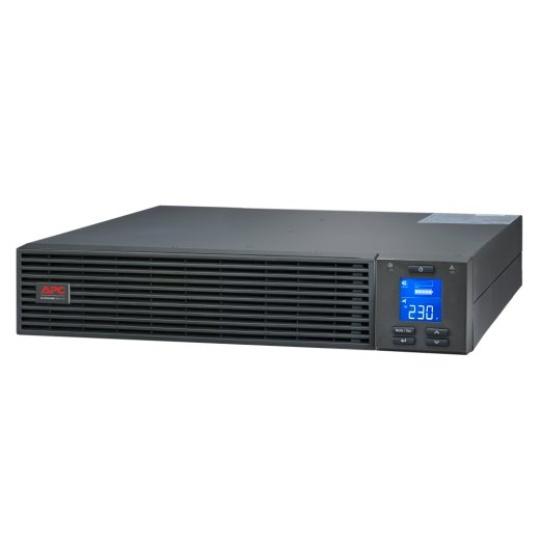

APC Easy UPS On-Line, 2000VA/1600W, Rackmount 2U, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD, W/ rail kit

Output
Max Configurable Power (Watts)
1.6kWatts / 2.0kVA
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load
88.0 %
Output Voltage Distortion
3 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
220 V, 240 V
Load Crest Factor
3 : 1
Topology
Double conversion online
Waveform type
Sine wave
Bypass
Internal bypass (automatic and manual)
Input
Input frequency
40 - 70 Hz Auto sensing
Input voltage range for main operations
110 - 285 Half load, 160 - 280 Full loadV
Number of Power Cords
1
Efficiency at Full Load
88.0 %
Other Input Voltages
220 V, 240 V
Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time
4hour(s)
Nominal Battery Voltage
48 V
Replacement Battery
APCRBCV201
Expected Battery Life (years)
3 - 5
Battery Charge Power (Watts)
70 Watts
Runtime
View Runtime Graph
Efficiency
View Efficiency Graph
Communications & Management
Interface Port(s)
DB-9 RS-232, USB
Control panel
Multifunction LCD status and control console
Available SmartSlot™ Interface Quantity
1
Surge Protection and Filtering
Surge energy rating
600Joules
Physical
Maximum Height
86MM, 8.6CM
Maximum Width
437MM, 43.7CM
Maximum Depth
462MM, 46.2CM
Net Weight
18.2KG
Shipping weight
20.7KG
Shipping Height
218MM, 21.8CM
Shipping Width
700MM, 70.0CM
Shipping Depth
550MM, 55.0CM
Color
Black
Environmental
Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 (Non-condensing) %
Operating Elevation
0 - 3000meters
Storage Temperature
-20 - 50 °C
Storage Relative Humidity
0 - 95 (Non-condensing) %
Storage Elevation
0 - 15000meters
Audible noise at 1 meter from surface of unit
50.0dBA
Online thermal dissipation
745.0BTU/hr
Protection Class
IP20
Conformance
Approvals
CE, EAC, TISI
Standard warranty
2 years repair or replace
