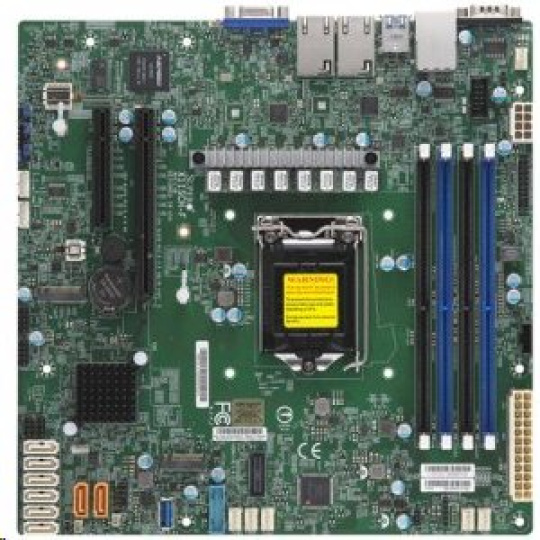

MBD-X11SCH-F-B Supermicro mainboard server X11SCH-F Single Socket H4 (LGA 1151), 8 SATA3 (6Gbps); RAID 0, 1, 5, 10; 2x 1GbE LAN with Intel I210-AT; 1 PCI-E 3.0 x8 (in x16) and 1 PCI-E 3.0 x8 slots, 4 DIMM slots, bulk Technical Specification Main Board Server - Processor Chipset: Intel C246 CPU Socket Standard: Socket 1151 Supports Central Processor Unit: Intel Celeron Intel Pentium Intel Core i3 Intel Xeon E-2100 Series Intel 8th Gen Processors Intel 9th Gen Processors Intel Xeon E-2200 Series CPU Maximum Quantity Supports: 1 Features: Supports 14nm Processors Main Board Server - Memory Memory Type: DDR4 SDRAM Provides Error Checking Method: ECC Memory Speed: 2133MHz(PC4-17000) 2400MHz(PC4-19200) 2666MHz(PC4-21300) Memory Form Factor: DIMM 288-pin Maximum Installable System Memory Storage Capacity: 128 GB Memory Slot Total Quantity: 4 Memory Features: Unbuffered Controller Integrated: Storage Controller: Supports: Level 0, Level 1, Level 10, Level 5 SATA III-600 (8) Storage Controller: PCI Express 3.0 x4 (1 x M.2) Main Board Server - Video Output Video Controller Integrated: yes Video Chipset: Aspeed AST2500 Main Board Server - Networking Specifications LAN Architecture: Integrated: Gigabit Ethernet/Fast Ethernet/Ethernet (Intel i210) Slot Provided PCI Express 3.0 x8: 2 Interface Provided USB 3.1 Gen 1: 1 (USB Type A) USB 3.1 Gen 2: 2 (USB Type A) USB 2.0: 2 (USB Type A) VGA: 1 (15-pin DB) LAN: 1 (RJ-45) Serial: 1 Main Board Server - Mainboard Features BIOS Type: UEFI BIOS Features: PnP Support USB Keyboard support SMBIOS 2.7 Support PCI 3.0 ACPI 6.0 Support 256 Mb Flash ROM UEFI 2.7 Wake up/Sleep: RTC (real time clock) Wake up Hardware Monitoring: Chassis Fan Tachometer CPU Fan Tachometer CPU Temperature Chassis Temperature Sensing Main Board Server - Environment Maximum Operating Ambient Temperature: 50 °C Minimum Operating Ambient Temperature: 0 °C Maximum Operating Humidity: 90 % Minimum Operating Humidity: 8 % Main Board Server - Dimensions&Weight Form Factor: Micro ATX Height (mm): 243.8 mm Width (mm): 243.8 mm
